Send InquiryRoof Sheet Roll Forming Machine
Price 2000000 INR/ Unit
MOQ : 1 , , Unit
Roof Sheet Roll Forming Machine Specification
- Type
- Roof Sheet Roll Forming Machine
- Material
- Metal
- Automatic Grade
- Automatic
- Warranty
- 1 Year
Roof Sheet Roll Forming Machine Trade Information
- Minimum Order Quantity
- 1 , , Unit
- Payment Terms
- Cash Advance (CA)
- Supply Ability
- 1 , , Unit Per Week
- Delivery Time
- 30 Days
- Main Export Market(s)
- Australia, South America, Western Europe, Middle East, Africa, Central America, Asia, Eastern Europe, North America
- Main Domestic Market
- All India
About Roof Sheet Roll Forming Machine

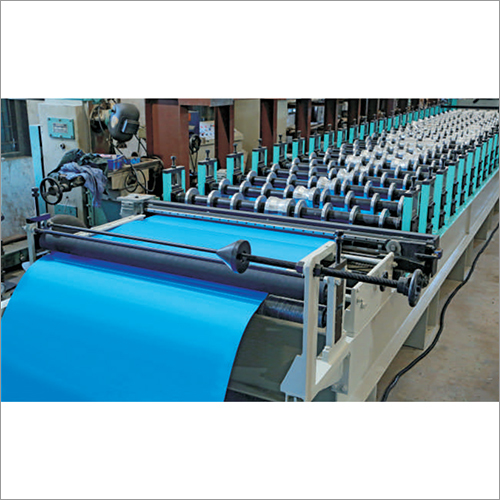

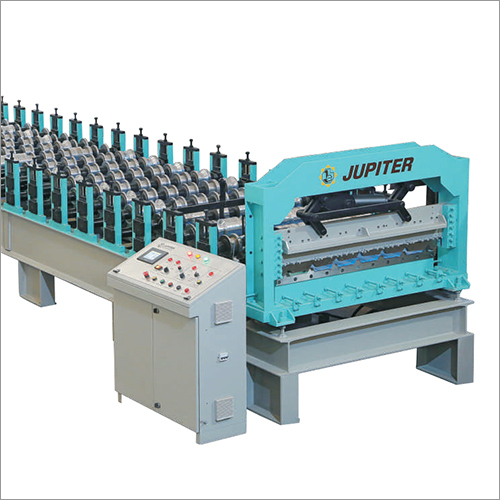

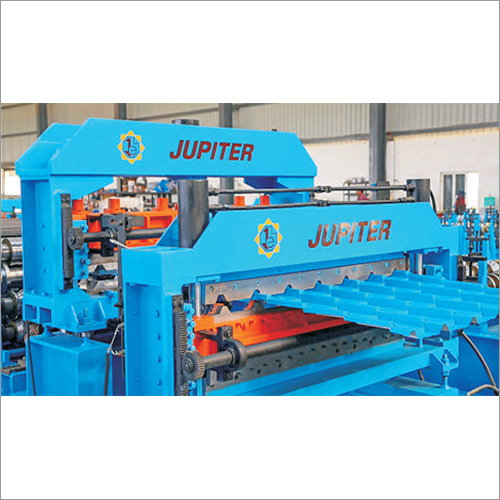

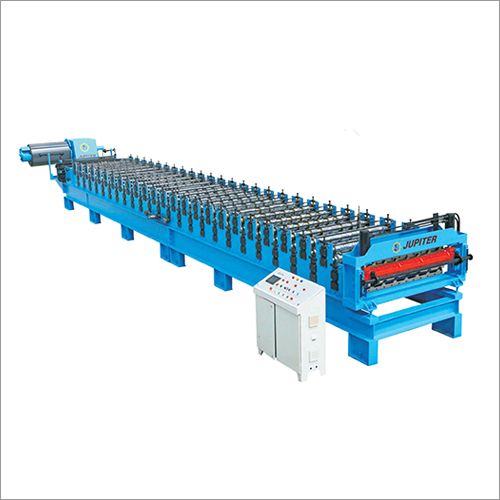

Roof Sheet Roll Forming Machine is a robust and high-grade industrial machine that is widely acclaimed among our customers owing to its high build quality, resilience, and ruggedized construction. This machine is typically used in industries in order to make rolls of roof sheet during production process. The Roof Sheet Roll Forming Machine is sturdy and resilient. It can endure impacts, heavy loads, and tough conditions; therefore, it is sure to last for an extended period of time.
SPECIFICATION
|
Material |
Steel |
|
Cutting Type |
Hydraulic |
|
Job Thickness |
0.1-0.5 mm, 0.5-1 mm |
|
Automation Grade |
Automatic |
|
Maximum sheet width that can be formed |
1450 |
|
Coil weight |
3 MT Max |
|
Coil width |
1450 mm |
|
Coil bore |
450 mm min, 510 mm max dia. |
|
Mandrel movement |
Manually adjusted |
|
Back Tension |
Manually adjusted |
|
Maximum sheet thickness in G I Strips that can be formed |
1 mm |
|
Vertical distance between shafts |
100 mm |
|
Horizontal distance between shafts |
190 mm |
|
Number of forming stations |
24 |
|
Vertical station |
7 |
|
Total HP for Line |
5 (ABB) |
|
Speed of the machine |
4mt/minute |
|
Size of machine |
1600 x 800 x 1100 mm |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Roll Forming Machine Category

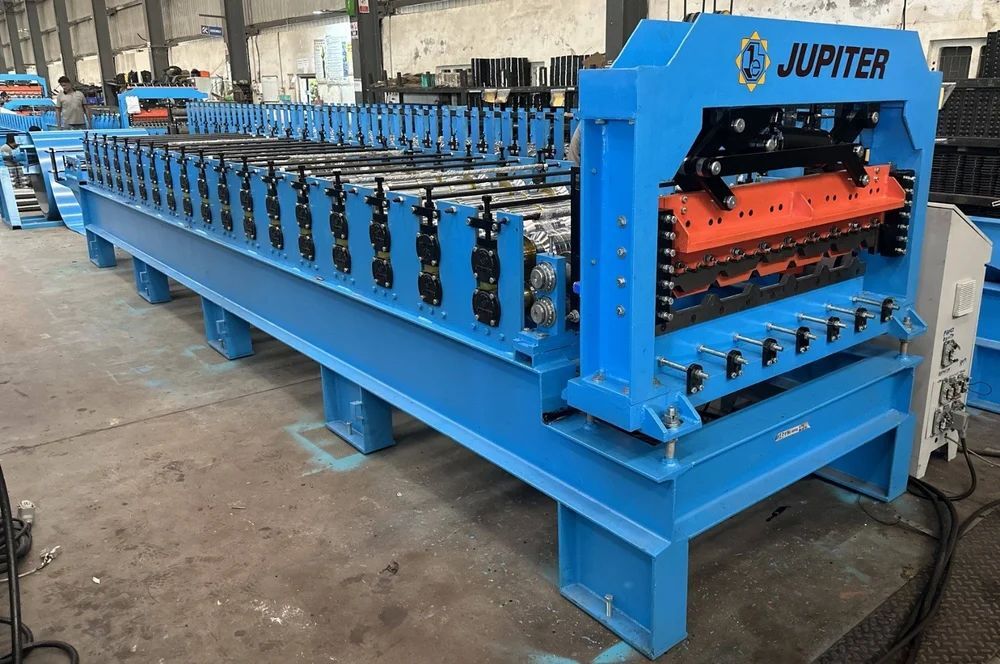

Roll Forming Machine
